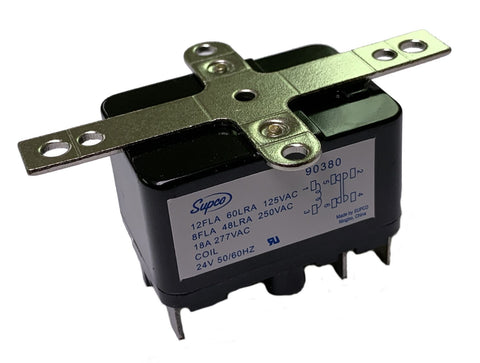

Fan Relay, 24V, NO/NC, 90380

  • $2290


Replacement 24V Fan Relay

  • 24 VAC control
  • NO/NC (1 normally open, 1 normally closed)
  • Relay used for various HVAC/R and Industrial applications
  • FLA @ 125V 12 FLA
  • LRA @ 125V 60 LRA
  • FLA @ 250V 8 FLA
  • LRA @ 250V 48 LRA
  • 50/60 Hz

Supco #: 90380
Tyree #: 236412

An electric relay in a furnace is responsible for relaying electrical power to the heating elements and the blower motor. The heating element(s) provide the heat to warm the air, and the blower motor moves this warmed air through the ductwork. The thermostat switches the relay to “closed” position when heat is called for, sending electrical power, and then to “open” position when the furnace reaches the indoor target temperature, cutting off the power. The relay is therefore crucial for the furnace’s operation. Relays are usually replaced when the furnace limit switch is replaced.
