Dual Voltage Motor; 115/230, 3000 RPM, 1/20 HP, 570

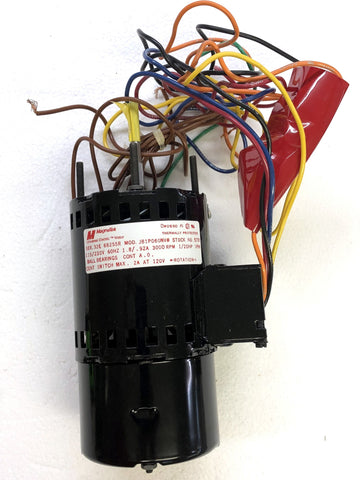

Dual voltage motor
Specifications:
- 1/20 HP
- 1.8/0.92 Amp
- 3000 RPM
- 115/230 Volt
- 1 PH
- 60 Hz
- Type:
- Rotation: CWSE
- Frame:
- Motor diameter: 3-1/2" diameter
- Motor length less shaft: 6"

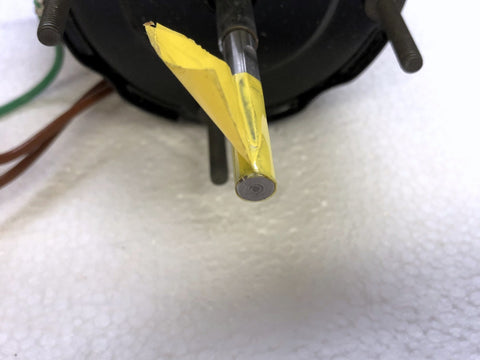

- Shaft length: 2-1/2" x 1/4" (flat on one side)
We are happy to assist you in selecting an appropriate motor. Motors are not returnable.

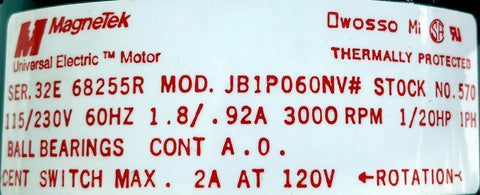

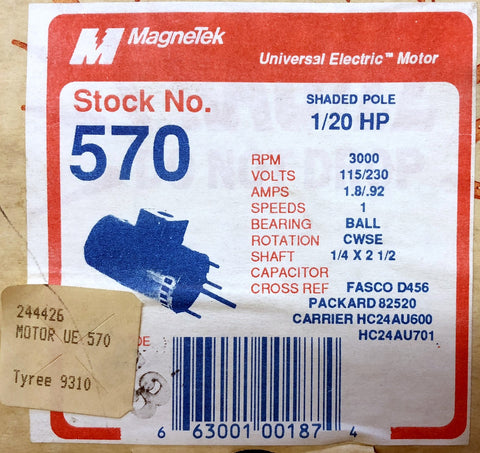

Manufacturer: MagneTek, Universal Electric
Model #: 570, JB1P060NV#
Part #:
Serial #: 32E 68255R
Tyree #: 244426
Cross Reference: FASCO D456, PACKARD 82520, CARRIER HC24AU600, HC24AU701
