5" Motor; 230V, 1/4 HP, 1050 RPM, 3 Speed, Functional Replacement for S1-1468-120P
Direct OEM replacement motor no longer available. Functional replacement will be shipped
Original Motor Specifications:
Original Motor Specifications:
- 1/6 HP
- 3.0 Amp
- 1050 RPM
- 2 Speed
- 230 Volt
- Rotation: CW lead end
- Thermally protected
- Continuous duty
- Shaft: 1/2" X 4-1/2" flat
- Motor diameter: 5"
- Motor length minus shaft: 4-1/4"
- Frame: 42Y
- Open enclosure
- Mounting: belly band
- 60 Hz

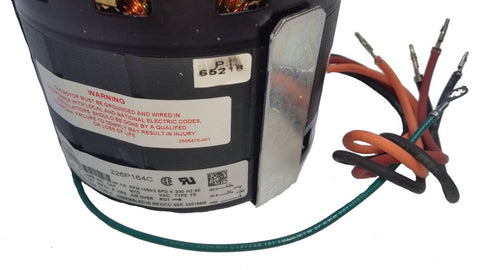

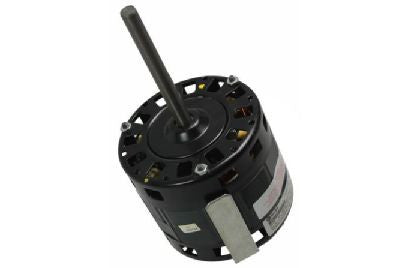

Functional Replacement Motor Specifications:
- 1/4 hp
- 1050 RPM
- 3-Speed
- 208-230V
- 1.5 amps
- Shaft 1/2" x 4.3"
- Rotation = Reversible
- 5.0" Diameter
- Motor case length 5.3"
- Sleeve bearings
- Requires 7.5 MFD capacitor
We are happy to assist you in selecting an appropriate motor. Motors are not returnable.
Model #: 1391 Functional Replacement for S1-148-120P
Tyree #: 243659
